Product Description
Product Introduction:
The Autel MaxiSys Elite II is the newest Autel’s highly advanced smart diagnostic tool. It is based on the fast and intuitive Android operating system and powered by Octa-core processor (2.3GHz Quad + 1.7GHz Quad) which is the world’s fastest mobile processor. Its visually stunning 9.7” Retina display offers ultra-high resolutions up to 2048x1536 and an array of powerful and optimized applications.
The Autel MaxiSys Elite II rapidly performs every job from comprehensive vehicle diagnoses & analysis to advanced ECU programming. Being 2x faster than other similar devices, the MaxiSys Elite II provides a long battery life by applying intelligent power saving method. The MaxiSys Elite II offers a super-sensitive capacitive screen which is able to respond to gloved, moistened and even greasy fingers! The ergonomically docking station provides optimum visibility and convenient charging that can allay power shortage concerns.
Main Features of Autel MaxiSys Elite II :
• The most extensive complete system coverage for more than 80 US domestic, Asian and European vehicle makers and models
• Exceptional OE-level functionality from comprehensive OBDII diagnoses & services to advanced ECU coding and programming
• Uniquely integrate vehicle programming capabilities with a SAE J2534-1 & SAE J2534-1-2 vehicle pass-thru programming interface
• Automatic system and software updates with real-time push message notifications via internet
• Instant remote control tech support anytime, anywhere
•Interactive data logging sessions enable direct contact with Autel Support for the troubleshooting of the diagnosed bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info and vehicle records well organized
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
Main Functions of Autel MaxiSys Elite II:
All system diagnoses, Engine、ABS、SRS、transmission、body system, fault code reading, erase trouble codes, data flow reading, etc.
36 special functions，including TPS, SAS, DPF, EPB, Injector code, TPMS, etc.
IMMO key programming, TSB, repair assist, DTC analysis, relevant cases, system topology
Functions 1: J2534 ECU programming(BENZ&BMW) ECU Coding
Functions 2: Intelligent Diagnostics
Functions 3: VAG Guided Function
Functions 4: Bi-direction control /Active Test
The Product Comparison Chart
The Specifications of Autel MaxiSys Elite II：
| Model |
Autel MaxiSys Elite II |
| Operating System |
Android 7.0 |
| Processor |
Samsung Exynos 8895V octa-core Processor |
| Memory |
4GB RAM & 128GB On-board Memory |
| Display |
9.7-inch TFT-LCD |
| Resolution |
1536 x 2048 |
| Camera |
Rear: 16 Megapixel, Front: 5.0 Megapixel |
| Battery |
15000mAh 3.8V lithium-polymer battery |
| Input Voltage |
12V/3A Adapter |
| Languages |
English(default language), other 15 languages can be supported with our help. |
| Weight |
1.66kg (3.66 lb) |
| Operating Temperature |
0 to 50°C (32 to 122°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Custom Bundle |
Yes |
| Bundle Description |
MV105 digital inspection camera |
| UPC |
Does not apply |
| Manufacturer Part Number |
MS908SP Elite MS919 MS Ultra MS909CV MK906BT |
| Type |
Intelligent Bi-Directional Diagnostic Scanner Tablet |
| OBD Interface |
CAN, EOBD, OBD, OBDII |
| Connectivity |
WiFi/Bluetooth |
| Update |
1 Year Free Update |
| Warranty |
1 Year |
| Supported System |
ABS, DPF, EPB, SAS, SRS, TPMS, Engine, Transmission, IMMO,etc. |
| Vehicle Type |
Passenger Vehicle |
Note: The Autel MaxiSys Elite II has no IP restrictions. 15 languges: German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, Turkish, Thai, Vietnamese can be supported with our help.

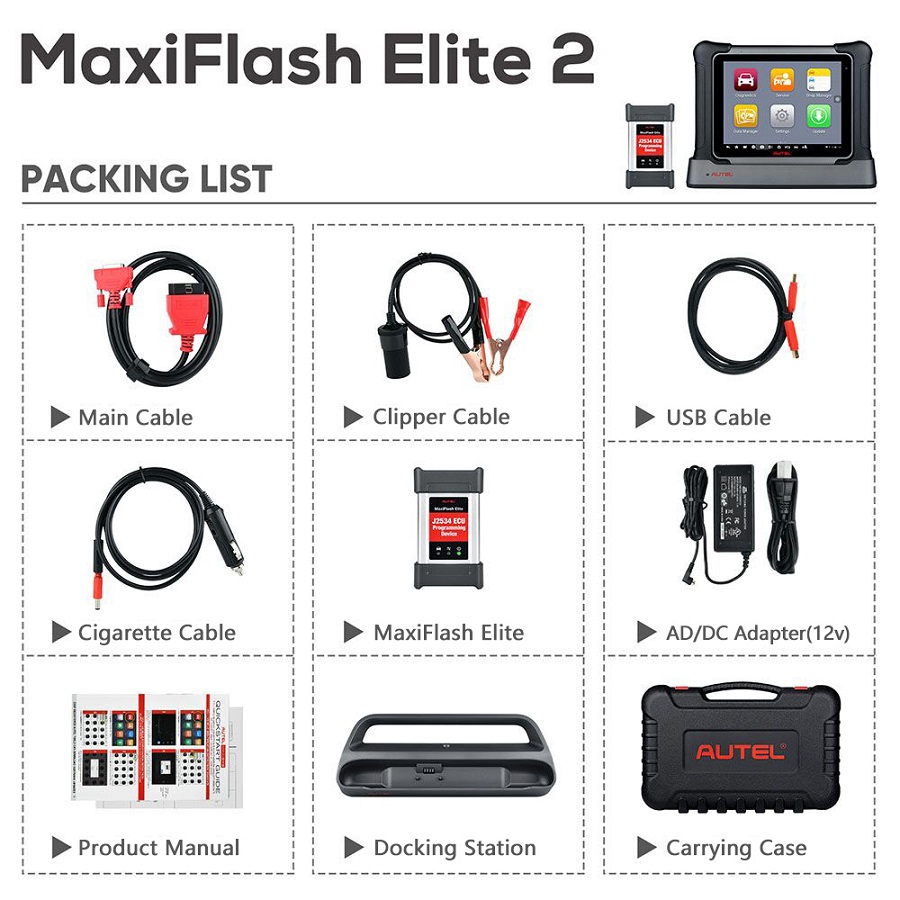

Package Includes:
1pc x Autel MaxiSys Elite II main unit
1pc x main cable
1pc x clipper cable
1pc x USB cable
1pc x ciagrette cable
1pc x MaxiFlash Elite
1pc x AC/DC adapter(12V)
1pc x product manual
1pc x docking station
1pc x carrying case
